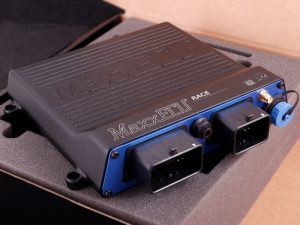

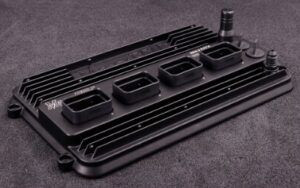

Description It’s here! The Generation 2 MaxxECU! The first of the GEN 2 out of the gates, the MaxxECU RACE GEN2 The MaxxECU brand, has fast become my favourite ECU manufacturer. We install and tune these daily here at the ‘Tuningshed’. I’ve literally spent hours on the dyno, tuning them. We’ve installed countless setups too. We can offer advice on ECU selection, and even with setup and first start. Best of all, we can tune the vehicle for you too. MaxxECU Race GEN 2 Included within the kit: MaxxECU Race & Limited time only free PVE MaxxECU Race Alluminium Mount Bracket Selected features Volumetric efficiency fuel tuning Boost control (triple stage) Launch Control Anti-Lag with cooldown features Traction and power management features Shift Cut and sequential gearbox control Flex Fuel Nitrous with purge and multiple stage control Knock control VANOS / VVTi variable cam timing Auto Transmission (8HP, 4l60/65/80/85) OEM CAN Integrations DSG / DCT / 8HP CAN Gearbox Control Internal logging up to 1000hz Waterproof to IP68 Built in 550kpa / 80psi Map Sensor 16 Injector 12 Ignition 16 GP Outputs 8 Pulse inputs 24 Analogue inputs 8 – Built in EGT Dual Wideband (LSU4.2 / 4.9 / 5.2) Dual CAN-BUS Dual Knock Dual USB-C Wi-Fi & Bluetooth Alluminium Case Target engines of MaxxECU RACE All 1-12 cylinder engines (2/4-stroke) Up to 12 cylinders fully sequentially Up to 12 cylinders maximum in wasted spark MaxxECU RACE GEN 2 inputs 8 Pulse inputs (VR/HALL) 2 with selectable 5/12v supply 24 Analogue inputs (selectable pullups) 8 Built in Exhaust Gas Temperature Inputs (K-Type) Built in Dual Wideband (LSU 4.2, 4.9 & LSU5.2 support) Dual Knock Sensor Input MaxxECU RACE outputs 16 Injectors (Peak-Hold / Low Impedance) / GP Outputs 12 IGN / GP Outputs (Selectable 5v / 12v / GND) 8 GP Outputs (GND) 4 GP Outputs ( 12V) 4 GP Outputs (H-Bridge / E-Throttle) MaxxECU RACE technical Superseal 1.0 Connectors Built in 550kpa / 80Psi Map Sensor, user serviceable Built-In accelerometer up to 8G ARM dual core CPU 6-22v operating range 16GB internal logging capacity, 1000hz, all 1600 channels USB-C 280mbit/s (M-Tune PC Communication) USB-C 12mbit/s (Tablet / Charging) Wifi communication with MTune and MDash Dual CAN bus for expansion modules, OEM vehicle CAN OBD2, gearbox Resolution on ignition 0.1 degrees Resolution on injectors 0.001ms Performs fuel and igniton calculations 3,000 times per second 200hz sampling on all EGT inputs 2000hz sampling rate on analogue / digital inputs Weigth: 700g 240 x 138 x 35mm including protruding connectors Black powder-coated aluminium case All inputs / outputs safeguarded agains overvoltage / reverse polarity and short circuit When ‘Backorder’ is stated, the Webshop will allow you order the item, but please allow 2-weeks for delivery. When ‘In Stock’ is stated, normally you will recieve your product within 2 working days. Link to the MaxxECU Website for more information MaxxECU ECU Videos
