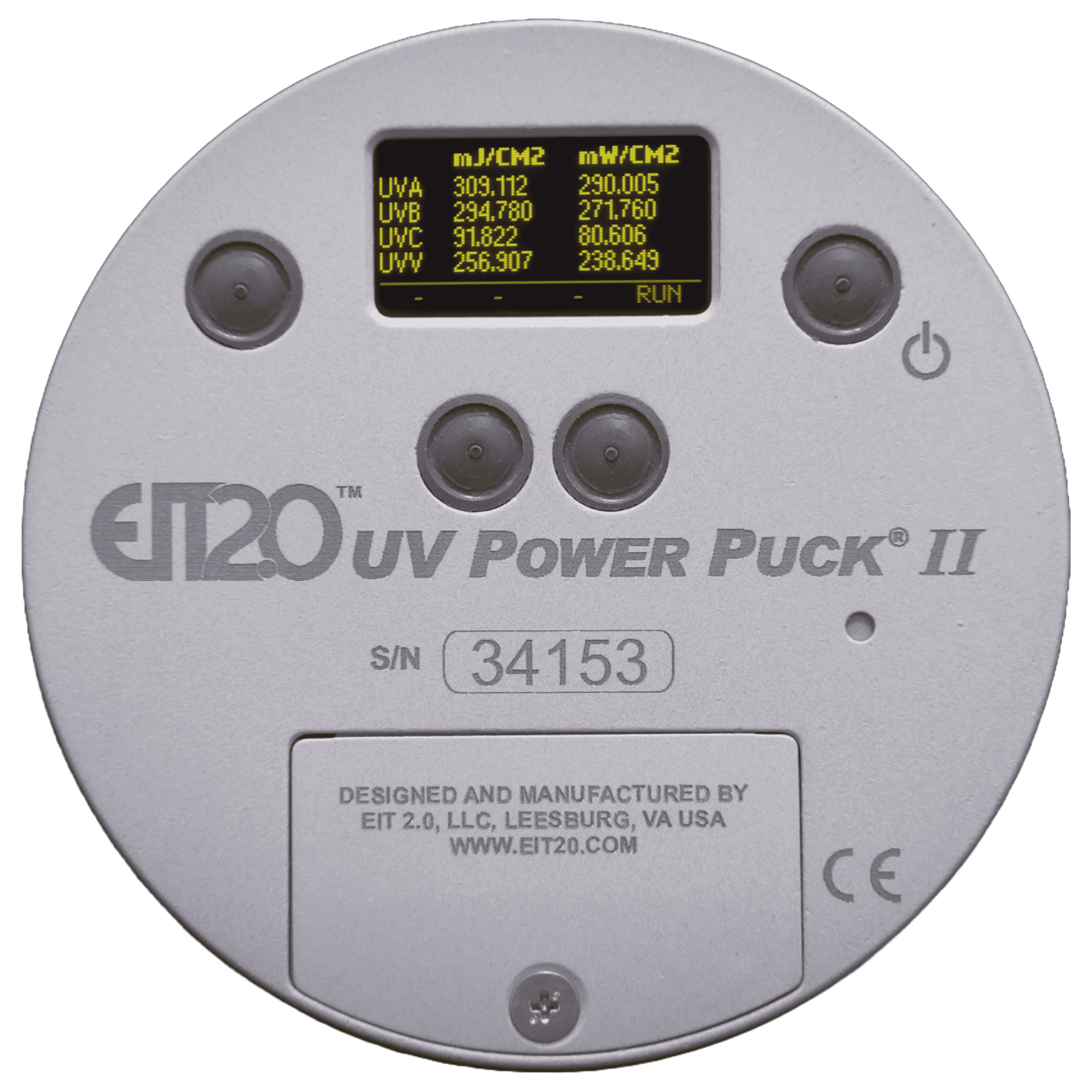

Description Up to 10 W/cm² (3 measurement power ranges available), Selectable 4 channel, 250-445nm, available in either Standard version that allows display of data on unit LCD display only, or Profiler version that transfers the data including the irradiance profile to a computer. (more…) Features: Used in curing applications of inks, adhesives, soldermasks, and epoxies (not for use in web press applications) Incorporates four separate spectral response ranges and measures all four simultaneously Display scrolls through UV dosage in Joules/cm2 and peak UV intensity in Watts/cm2 of all four separate UV spectral response ranges Measures UV lamp performance (and possible bandwidth shift for doped lamps) Compares the efficiencies of different UV curing systems Includes carrying case Profiler version utilizes EIT’s UV PowerView Software® III that allows for further analysis, comparison and evaluation on a PC. Operating Ranges: High Power: UVA, UVB, UVV: 100-10000 mW/cm² UVC: 10-1000 mW/cm² Mid Power: UVA, UVB, UVV: 10-1000 mW/cm² UVC: 1-100 mW/cm² Low Power: UVA, UVB, UVV, UVC: 1-100 mW/cm² PowerPuck II /UviCure Plus II Brochure PowerPuck II Profiler /UviCure Plus II Profiler Brochure
