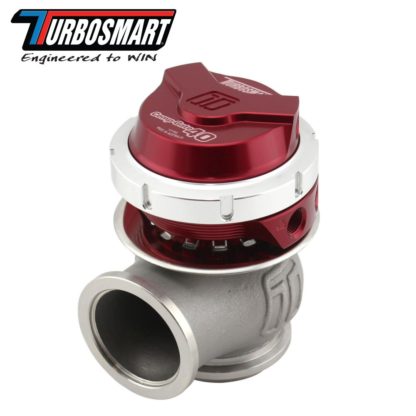

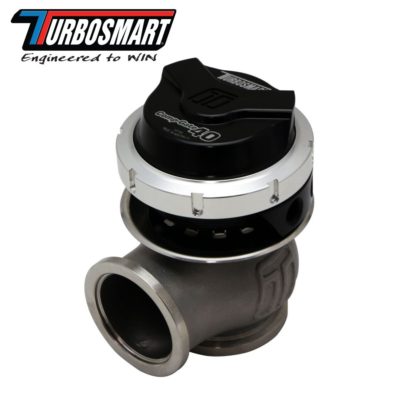

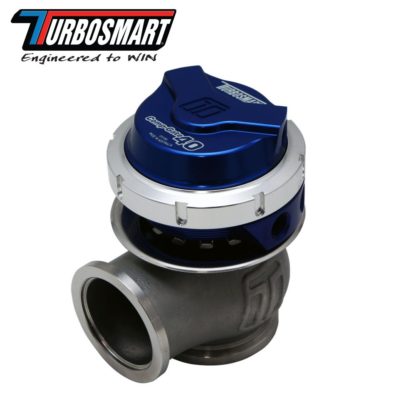

Description The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate. The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs. They are also available in Motorsport and compressed gas-only versions for those requiring specific applications. Please note these are available in 7 and 14psi versions. Gen-V Comp-Gate Features Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates 40mm valve size High temp spring combinations from 3 – 26psi supplied in the box 1/8”NPT ports V-band clamp mounting system to suit 1-3/4” OD pipe Locking collar for compact size and easy spring changes Available in Motorsport and Compressed Gas versions also. Hall Effect, Non-Contact Position Sensor Option Available. Whats in the Box?: Wastegate unit (pre-assembled with spring as per order) SS316 Valve seat Inlet V-Band Inlet SS304 weld flange Outlet V-Band Outlet SS304 weld flange Collar tool (master/slave) 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed) 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples Sticker Instruction card.
